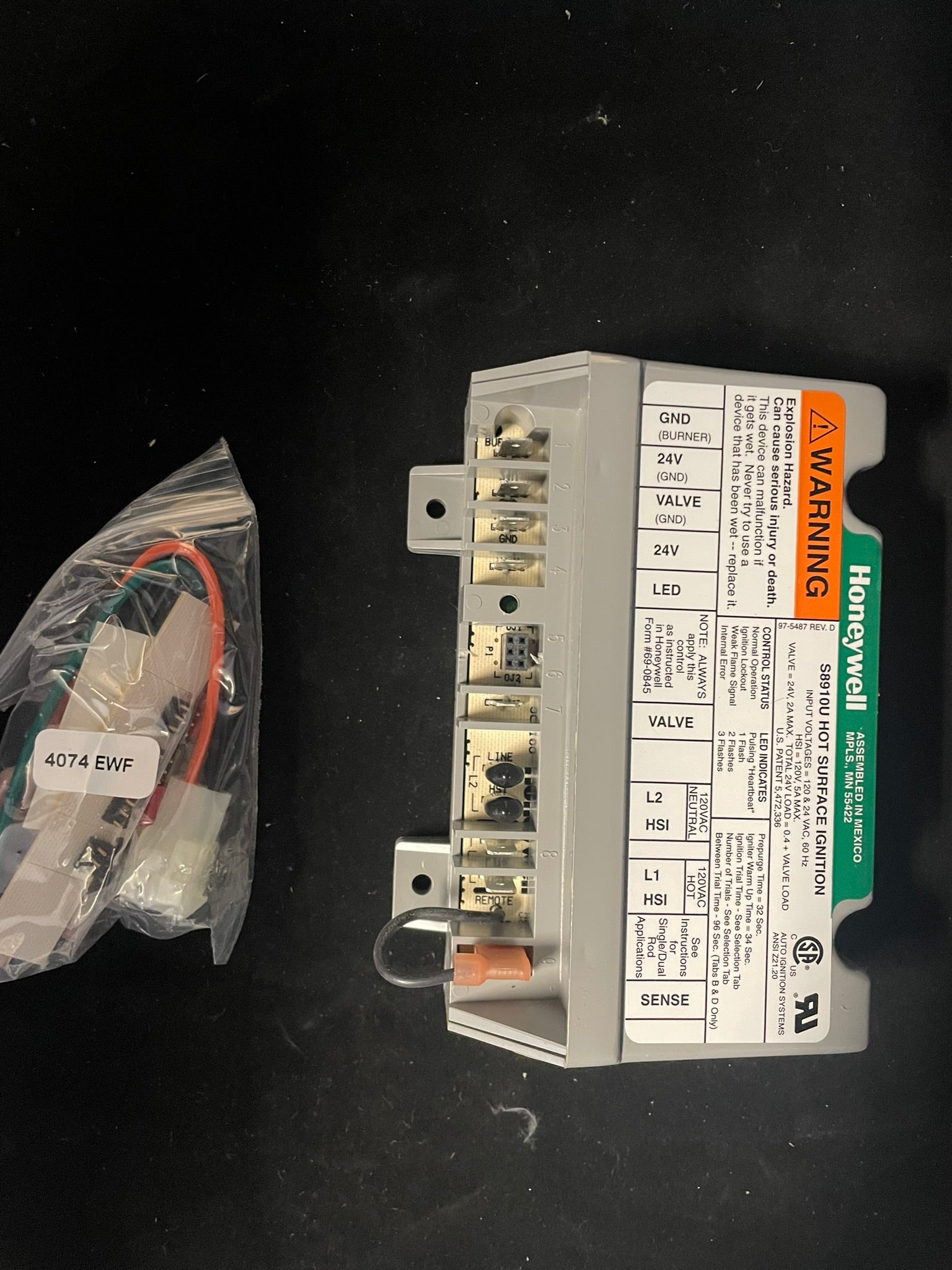

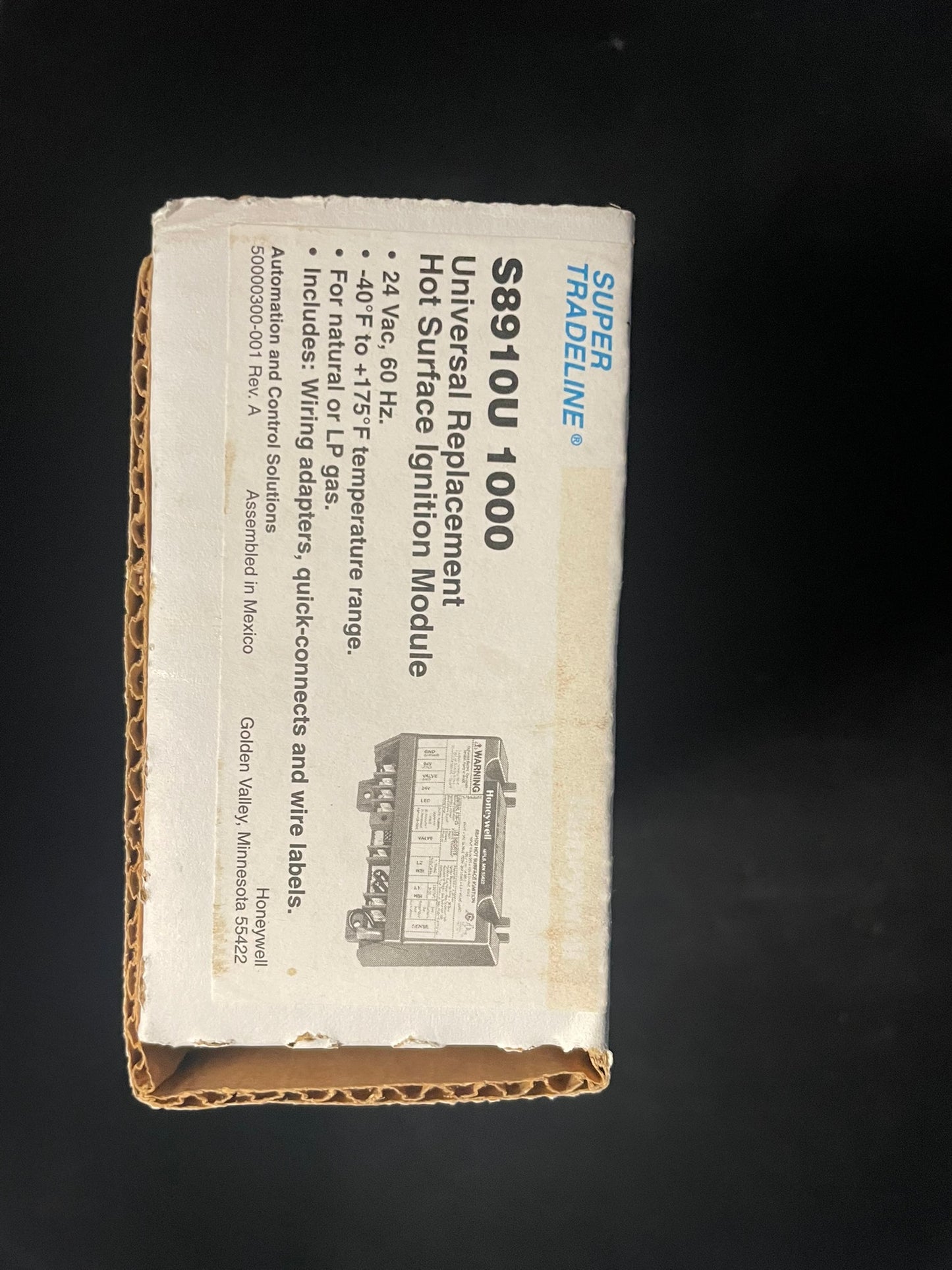

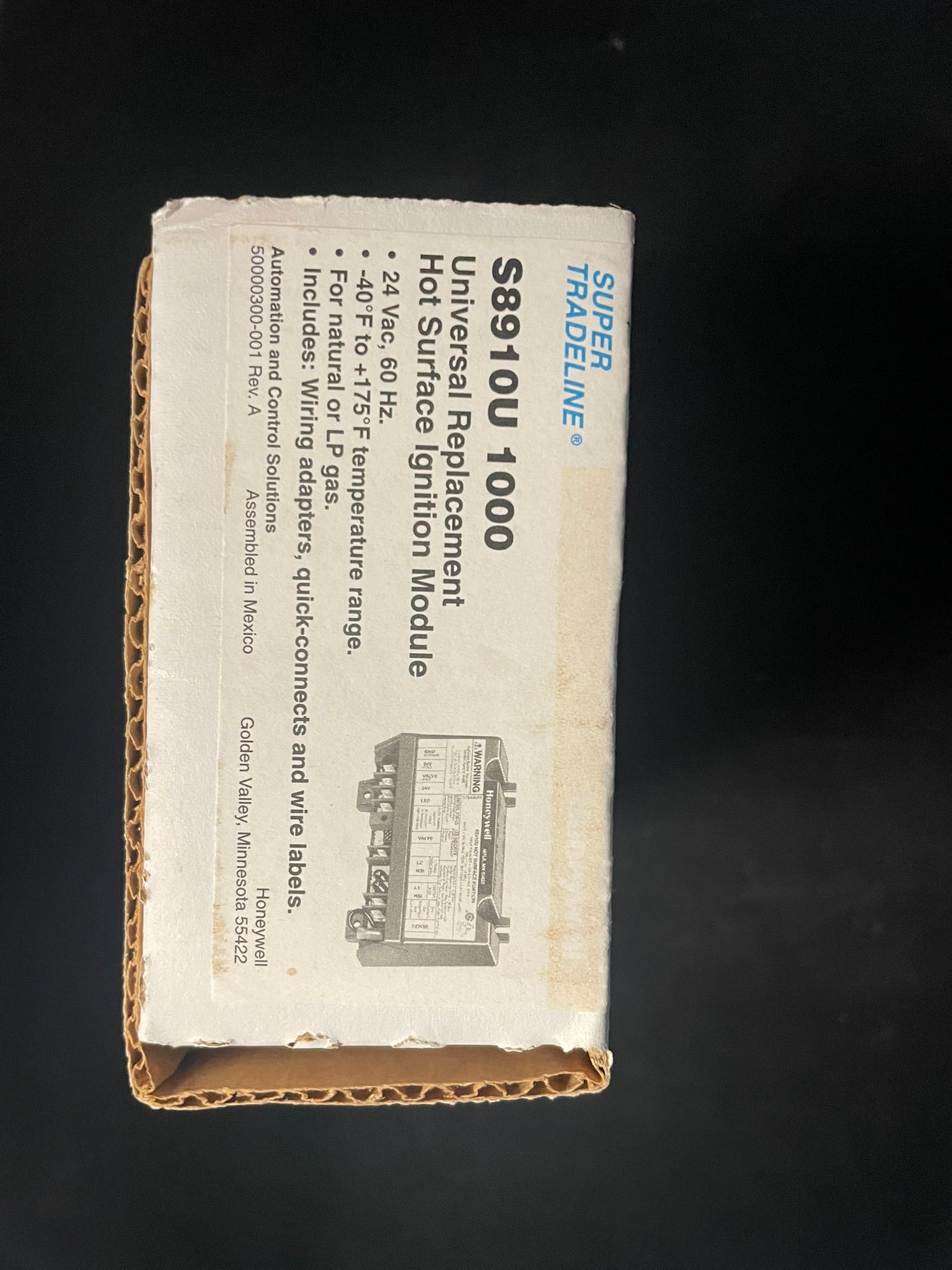

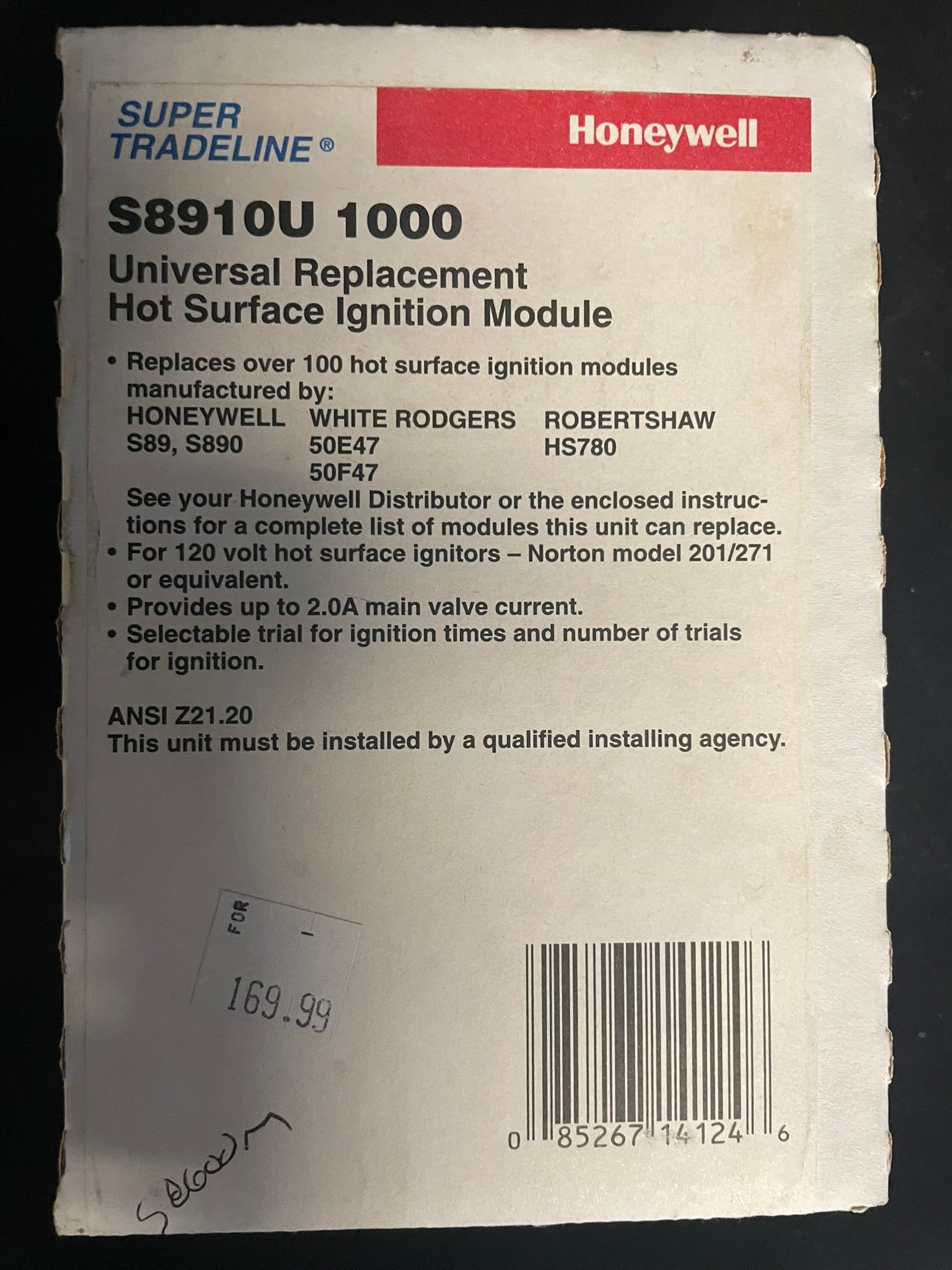

S8910U 1000 Universal Replacement Hot Surface Ignition Module

$125.00 USD

Sale Sold out

Replaces over 800 White-Rodgers, Robertshaw® and Honeywell® hot surface ignition models
For 120 VAC (up to 5 A) surface igniter (Norton 201/271 or equivalent)
S8910U 3000 series has LED status indicator and microammeter ports for easy trouble shooting
For local (single rod) or remote (dual rod) rectification type flame sensing
Contains easy-to-use cross reference and instructions plus the accessories required to replace the existing hot surface ignition module
Provides one or three ignition trials (four-second or seven-second trials) per call for heat
Field selectable number of ignition trials and trial time based on unit being replaced
Igniter warm up time: 7 (12 sec and third trial), 17 (27 sec and third trial), 34 or 45 sec
24 V control at 60 Hz
